Allpass Filters

All Pass filters do not affect the magnitude of sine wave components passing through it. It only affects their phase.

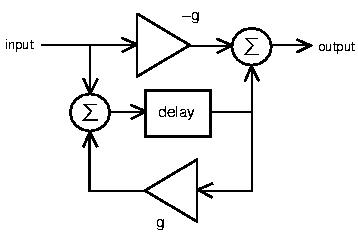

The all pass structure looks like this :


The time delay is usually in the range of 5-15 milliseconds. Gain g is in the range (0..1).
