Sun, 11 Jan 2009

libsamplerate 0.1.5.

There is a new release of libsamplerate available here. This release contains some improvements to the optimisations that were mentioned in this blog post.

After announcing the previous optimisation work on the Secret Rabbit Code mailing list someone asked for a special case optimisation of 6 channels for doing the 5.1 surround sound format. Then there was also a request for an 8 channel special case for doing 7.1 surround.

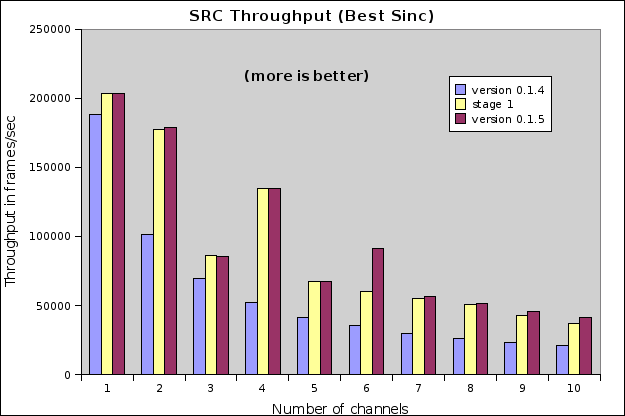

I added the 6 channel special case immediately and then found another optimisation for the multi-channel case which uses a horrible hack called Duff's Device in the inner most loop. The results for these optimisations can be seen on the following throughput graphs:


[Throughput graphs]

Obviously, the special cases for 1, 2, 4, and 6 channels have significant improvements, especially for 4 and 6 channels. The general multi channel code path is used for 3, 5, 7 and more channels. Interestingly, if one draws a line through the 1, 2, 4 and 6 channel through-puts for and then a line through the general multi channel through-puts, they intersect at about 8 channels, suggesting that there is very little to be gained by adding a special case code path for 8 channels.

The only downside of this new release is that it uses a C construct that is part of the 1999 ISO C Standard which the Microsoft C compiler does not support. Windows users that want to compile libsamplerate should either use GNU GCC or the Intel compiler with the -c99 command line option.

Posted at: 20:47 | Category: CodeHacking/SecretRabbitCode | Permalink
